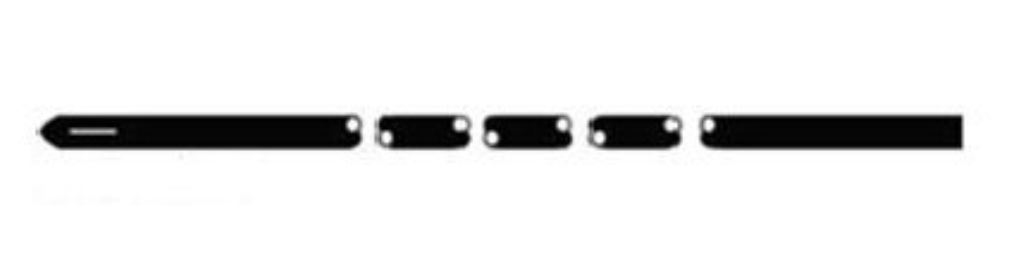

Ventricular

Catheter

Barium-impregnated silicone catheter provides resistance to kinking and compression. Stainless steel stylet allows atheter to be directed during catheter placement.The catheter is fabricated from silicone elastomer tubing impregnated with barium to provide radiopacity.

Barium impregnation allows for visualization of the catheter on x-ray.

Non-ferrous design will not interfere with CT scans or MRI.

Included with product 1ea. Ventricular Catheter Barium Impregnated I.D.: 1.3 mm O.D.: 2.5 mm Length: 20 cm 1ea. Stainless Steel Stylet (20 cm)

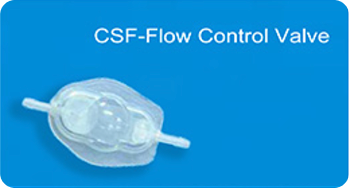

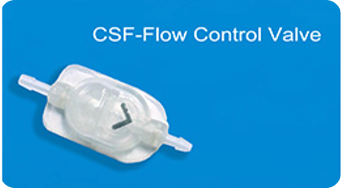

CSF Valve

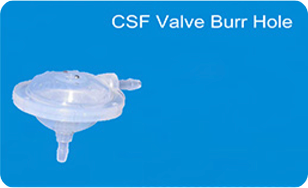

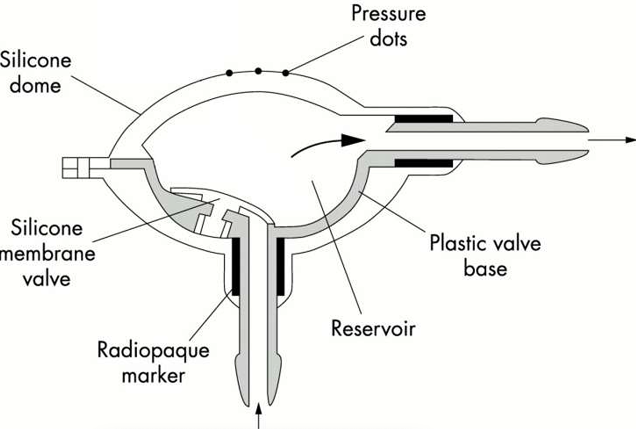

Burr Hole (L.M.H)

Two sizes are available: 12mm/14mm. (Pediatric/Adult) High, Medium, Low pressure are available

1. Flexible silicone elastomer eliminating valve sticking and deformation.

2. Connector included.

3. Internal flow path is uncomplicated.

4. Two-way flushing eliminates separate reservoirs or antechambers.

5. Non-metallic design will neo interfere with CT scans or MRI.

6. Polypropylene needle guard prevents complete penetration of the valve by needles.

7. Silicone elastomer dome is injectable.

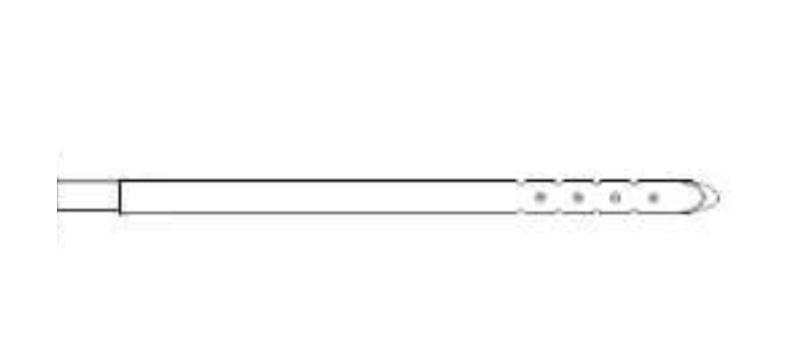

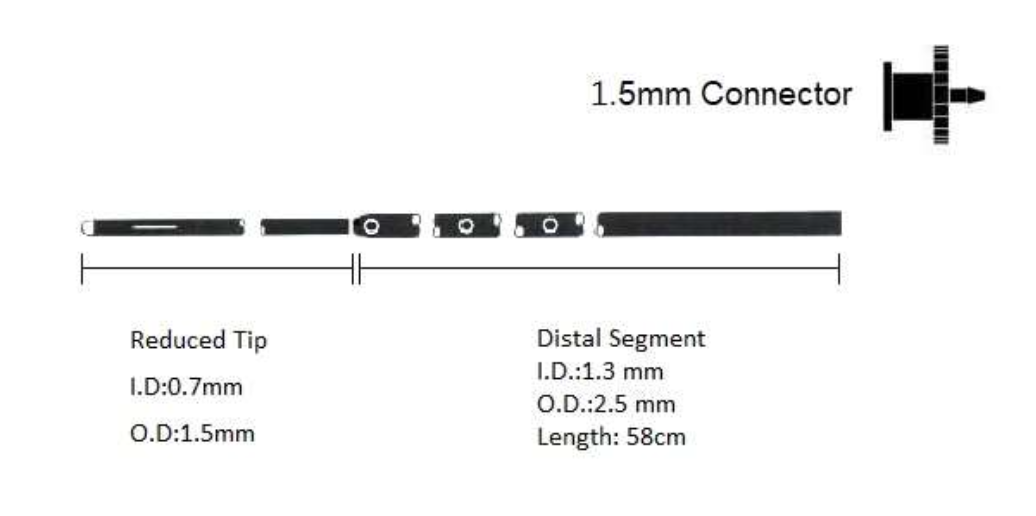

Distal

Catheter

Barium-impregnated silicone catheter provides resistance to kinking and compression.All catheter impregnated with white barium to provide radiopacity and resistance to catheter kinking and compression.

The proximal tip is filled with tantalum-impregnated silicone elastomer.CSF fluid flow from 4 slit openings prevent penetration and the obstruction of the catheter. Free-flow slit openings design to eliminate distal end migration.

Included with product 1ea. Distal Catheter Barium Impregnated I.D.: 1.3 mm O.D.: 2.5 mm Length: 58 cm 1ea. Connector (1.5 mm)

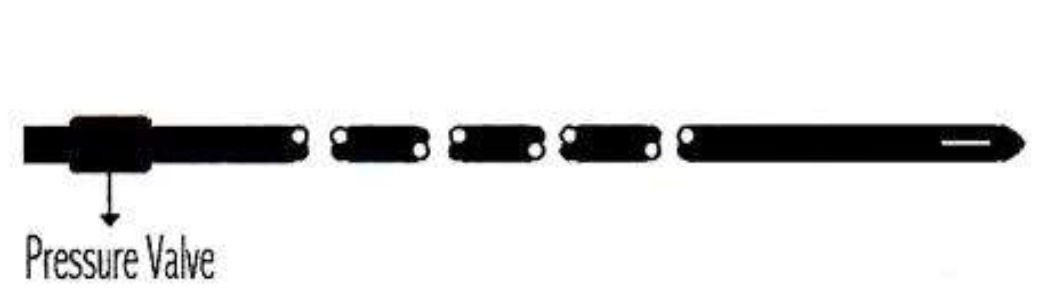

Peritoneal

Catheter (L.M.H)

Peritoneal Catheter, Small, Barium Impregnated, 90cm, a pressure valve at the tip,4 slit openings at the distal end. High, Medium, Low pressure are available according to the size of slit.

1. Tubing impregnated with white barium to provide radiopacity.
2. Pressure control valve.
3. Enable the surgeon to gauge and adjust its length.

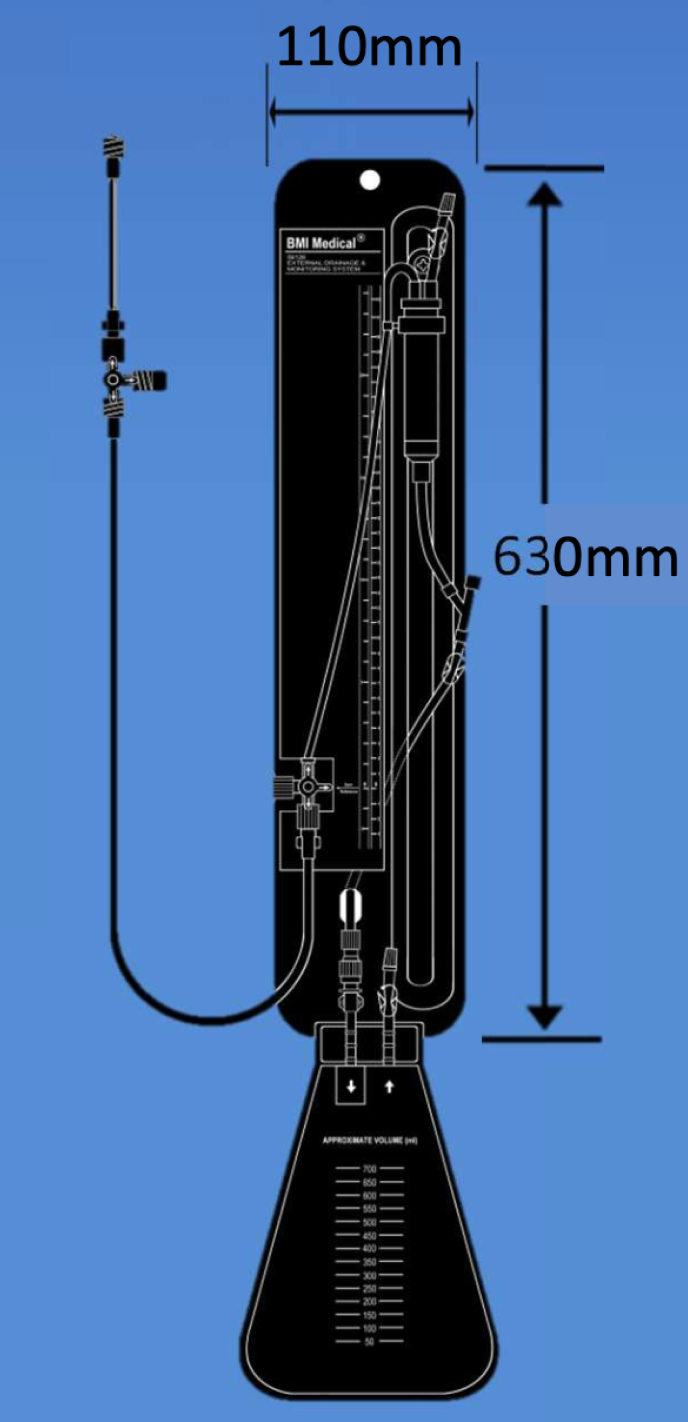

External Drainage

Monitoring System

Draining cerebrospinal fluid(CSF) from the lateral ventricles of the brain or the lumbar subarachnoid space.Monitoring (CSF) pressure and flow rate from the lateral ventricles of the brain or the lumbar subarachnoid space. Reduce intracranial pressure(ICP)

1. Hydrophobic filter prevents passage of bacteria and eliminates negative pressure artifacts.

2. Two convenient injection sites allow sampling and intraventricular medication.

3. Sliding chamber allows accurate flow monitoring.

4. Locking bracket is incorporated in the chamber for quick, accurate pressure head setting.

5. Large capacity drainage bag (700ml) may be disconnected for replacement or emptied for re-use.

6. Pressure monitoring can be performed at either the mounting panel or patient line port.

7. System panel is adjustable by using either the locking cord or 110mm mounting bracket.
